THE EMU. ™

emu_lg
Click to enlarge

4 – THE EMU . For ceilings of 9ft or higher the Emu will give your space that minimal/industrial look.
The fan body is available in painted flat black iron, patina iron or solid oil rubbed bronze patina. The painted flat black model and patina iron fans come with raw iron pulleys. The bronze fans come with polished solid bronze pulleys. The flat black painted model fan blades are built with 5 ft diameter sapele wood while the iron patina and solid bronze fan blades are fashioned from solid mahogany. Only round belts can be used to power these fans, their pulleys are 6 in in diameter. The flat black painted models can not be customized. The blades can be tilted to regulate or change the airflow.
15” or 11” optional finished or unfinished solid mahogany base is available.

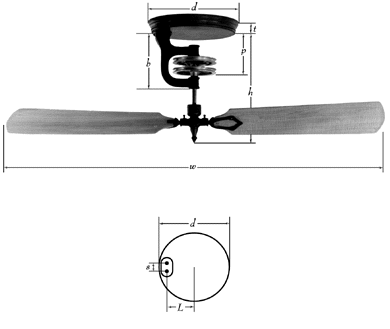

Standard Specifications
h – Overall Height 17 in.
b – Body Height 9 in.
p – Distance from bottom of pulley to base of body 6 in.
w – Diameter of blades 5 ft.
Mounting Dimensions
L – Distance between mounting leg and centers 5 in.
s – Distance between centers of lag screw holes 2.5 in.
Optional Mahogany Mounting Disk
d – Disk Diameter 15 in.
t – Disk Thickness 1.5 in.

emu_dia
