THE SMALL KIWI. ™

smkiwi_lg
Click to enlarge

6 – THE SMALL KIWI.™ One of two small motorized fans designed by Woolen Mill Fan Company LLC, is for low ceilings and spaces that require minimal design elements. The Small Kiwi is available in painted flat black, patina iron or oil rubbed solid bronze. A 100 rpm single speed motor is attached to the top of the mahogany disk so space is needed above the ceiling line for the 6in tall motor. For a 10” drop the hub used on the “Martin” fan is available. Blades can be tilted to regulate or change airflow.
7in solid finished or unfinished mahogany disk is included

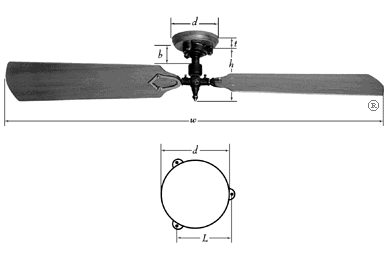

Standard Specifications
h – Overall Height 12 in.
      Optional height: 2 ft.
b – Body Height 3.5 in.
w – Diameter of blades 4 ft.
Mounting Dimensions
L – Distance between mounting leg centers 4.25 in.
Mahogany Mounting Disk
d – Disk Diameter 7 in.
t – Disk Thickness 1.5 in.

smkiwi_dia
